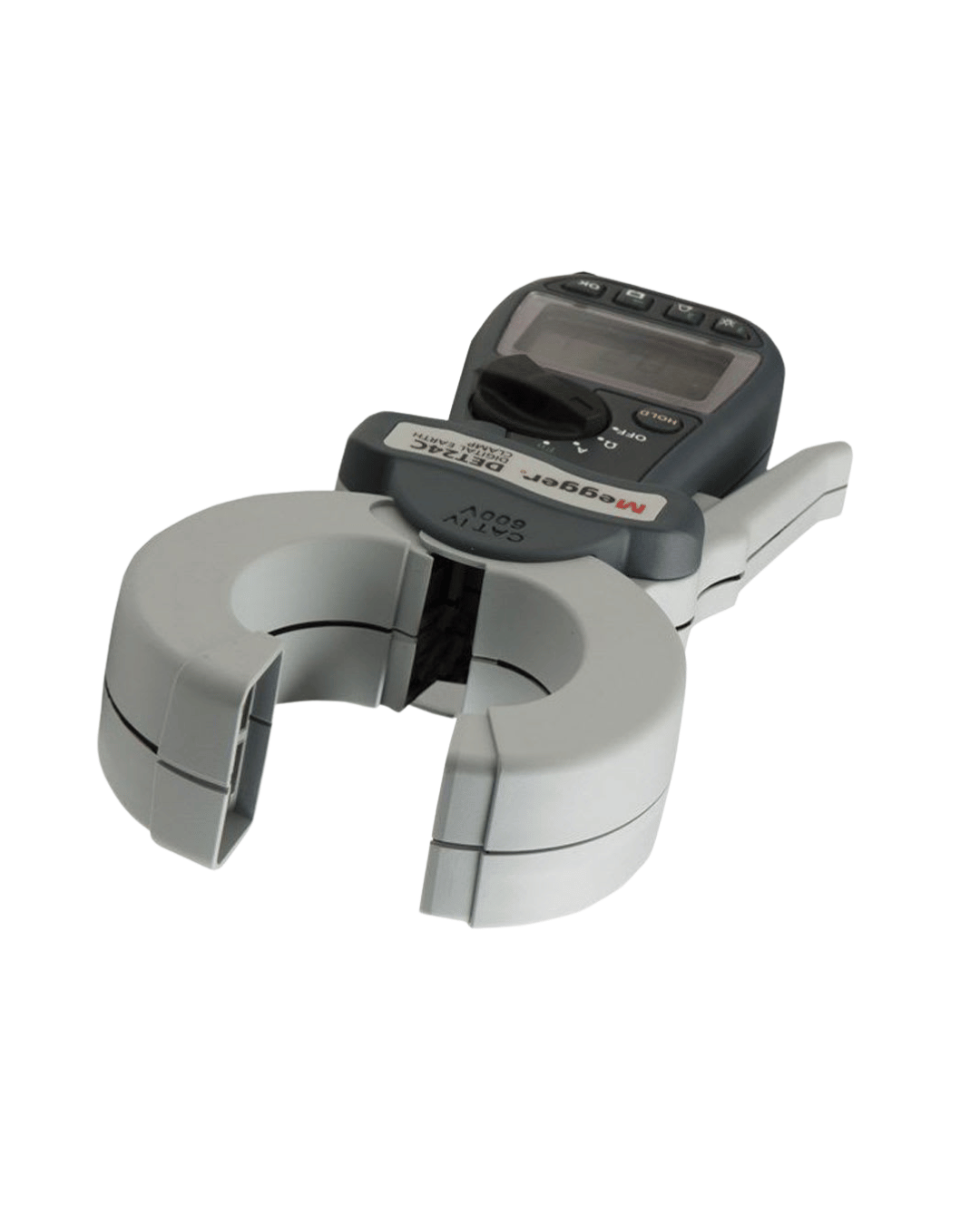

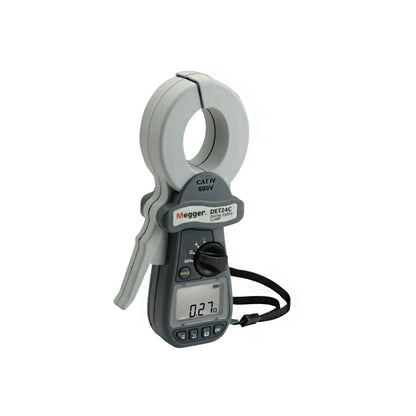

MEGGER-1007-331-DET24C Bluetooth Clamp-On Earth Tester

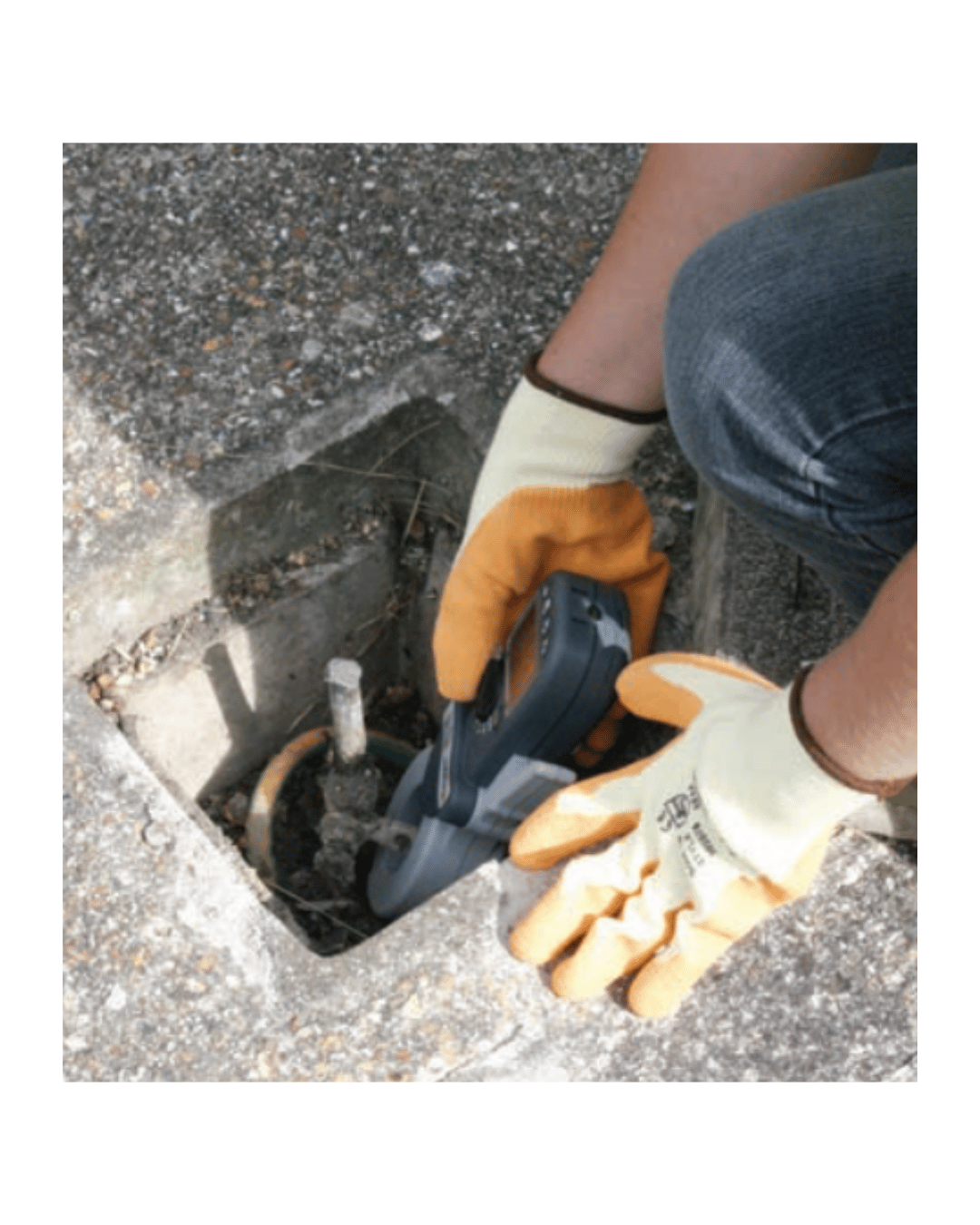

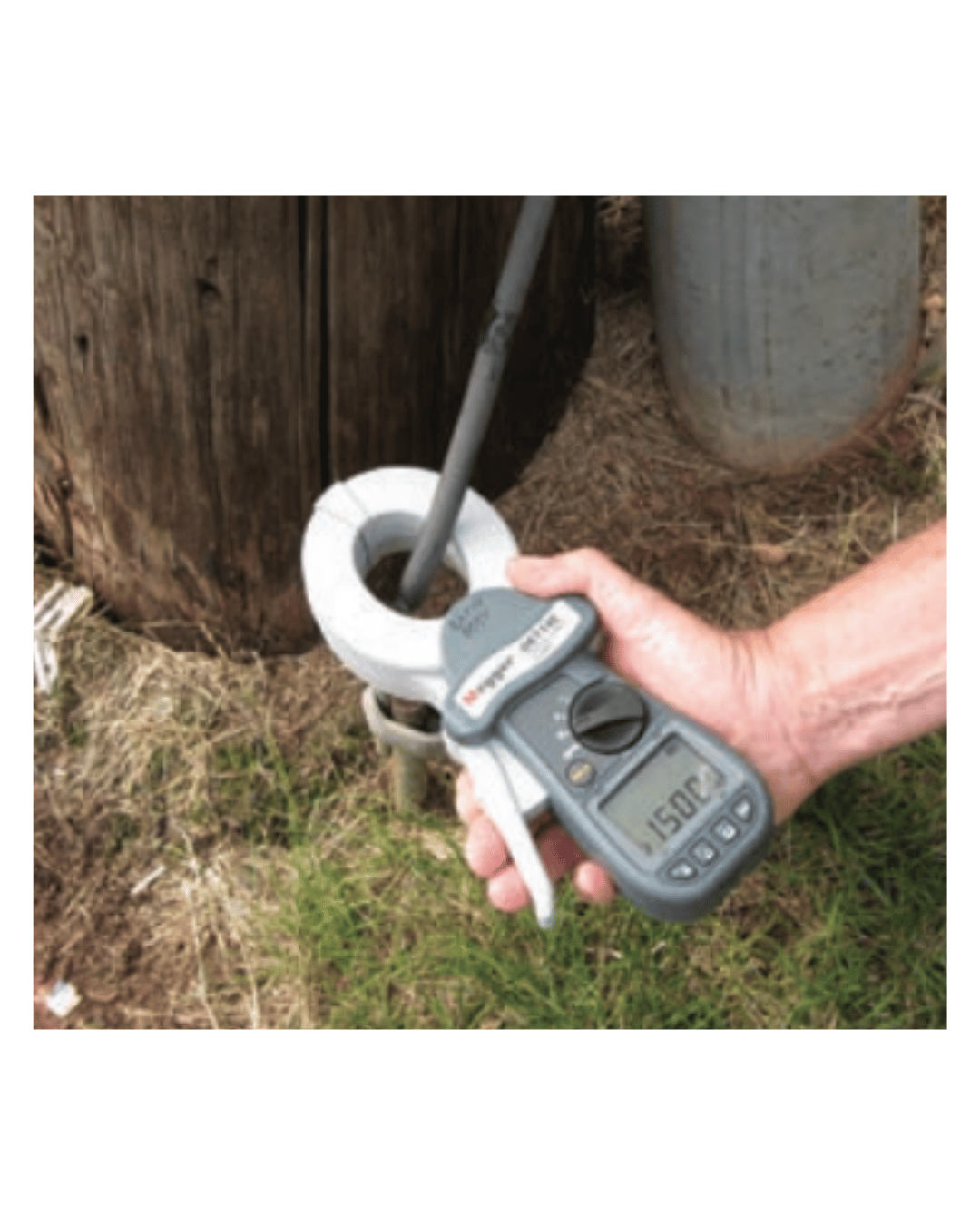

The advanced Megger DET24C sets new standards in access, performance, features, simplicity of operation and safety. These units are designed with flat core ends to prevent dirt build-up, ensuring measurement integrity and improved reliability over products with interlocking teeth. They induce a test current into earth systems and measure ground resistance in multi-ground installations without needing to disconnect the ground. The Megger DET24C also includes safety to CAT IV 600V. Improvements from past models include a built-in filter function for electrically noisy environments, time- and date-stamped stored test results and ultra-long battery life.

Key Features:

• Elliptical clamp shape improves access to earth cables and straps up to 50 mm
• Low maintenance flat jaw interface
• Measures ground resistance from 0.05 to 1500
• Measures true RMS ground leakage current from 0.5 mA rms to 35 A rms
• CAT IV 600 V safety rating
• Backlit LCD display
• Auto-current measurement safety feature
• Memory to record and view results
• Automatic self calibration
• Auto ranging
• High and low alarms
• Real time clock for date and time stamping of results
