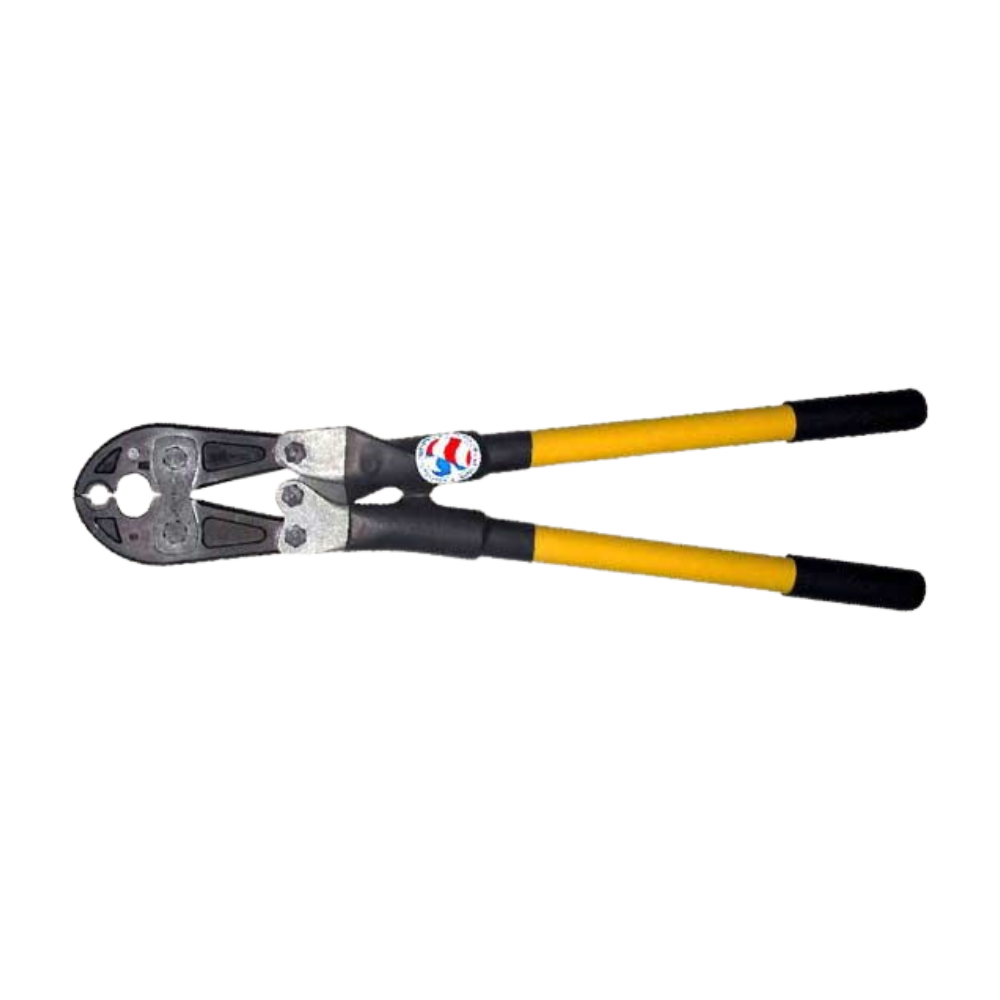

Reliable Equipment REL-BG-FG Manual Crimping Tool with Fiberglass handles

Product Overview: Reliable Equipment REL-BG-FG Manual Crimping Tool with Fiberglass hangles

REL-BG-FG

Reliable Equipment’s series of manually operated crimpers installs a full range of connectors from #14 through 4/0 and are equivalent to the Burndy MD-6.

Length: 28 in. Width: 28 in. (handle end), 4.5 in. (jaw end open). Weight: 6.5 lb.

FEATURES:

• Accepts all W-type dies available from Burndy or Reliable Equipment.
• Spring loaded die retainer pins assure positive lock.
• Butting jaws.
• Crimp force of 9,000 lbs.
• Visual alignment system assures proper crimp.
• Heavy duty forged steel jaws.
• High strength fiberglass handles with anti-slip grips.

TESTED:

ASTM D149 – 100Kv at 60Hz/12 inches or 300 mm for 5 minutes.
