OMICRON CP SB1 – Automated 3-Phase Transformer Test Switchbox

OMICRON CP SB1 – Automated 3-Phase Transformer Test Switchbox

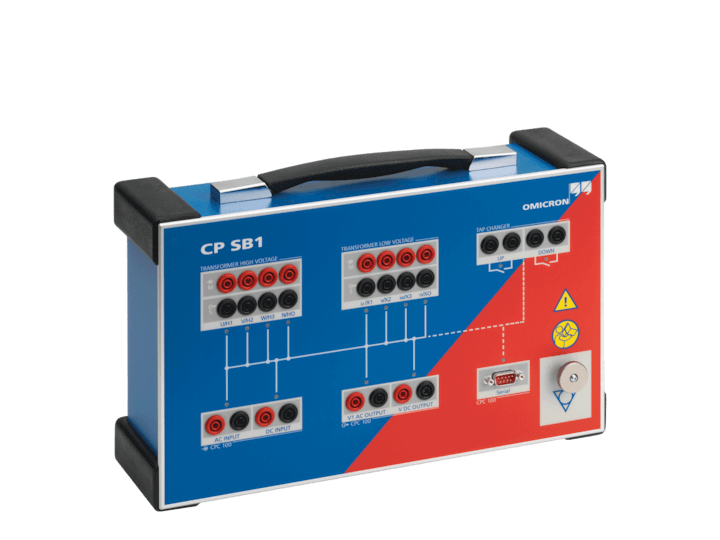

The OMICRON CP SB1 is an accessory designed for the CPC 100 Multi-Functional Primary Test System, facilitating fully automated testing of three-phase power transformers. It streamlines the measurement of transformer turns ratio (TTR), winding resistance, and tap changer functionality across all phases and tap positions, eliminating the need for manual rewiring between tests. Controlled via the CPC 100's serial interface, the CP SB1 enhances testing efficiency and safety by reducing operator intervention and minimizing wiring errors.
