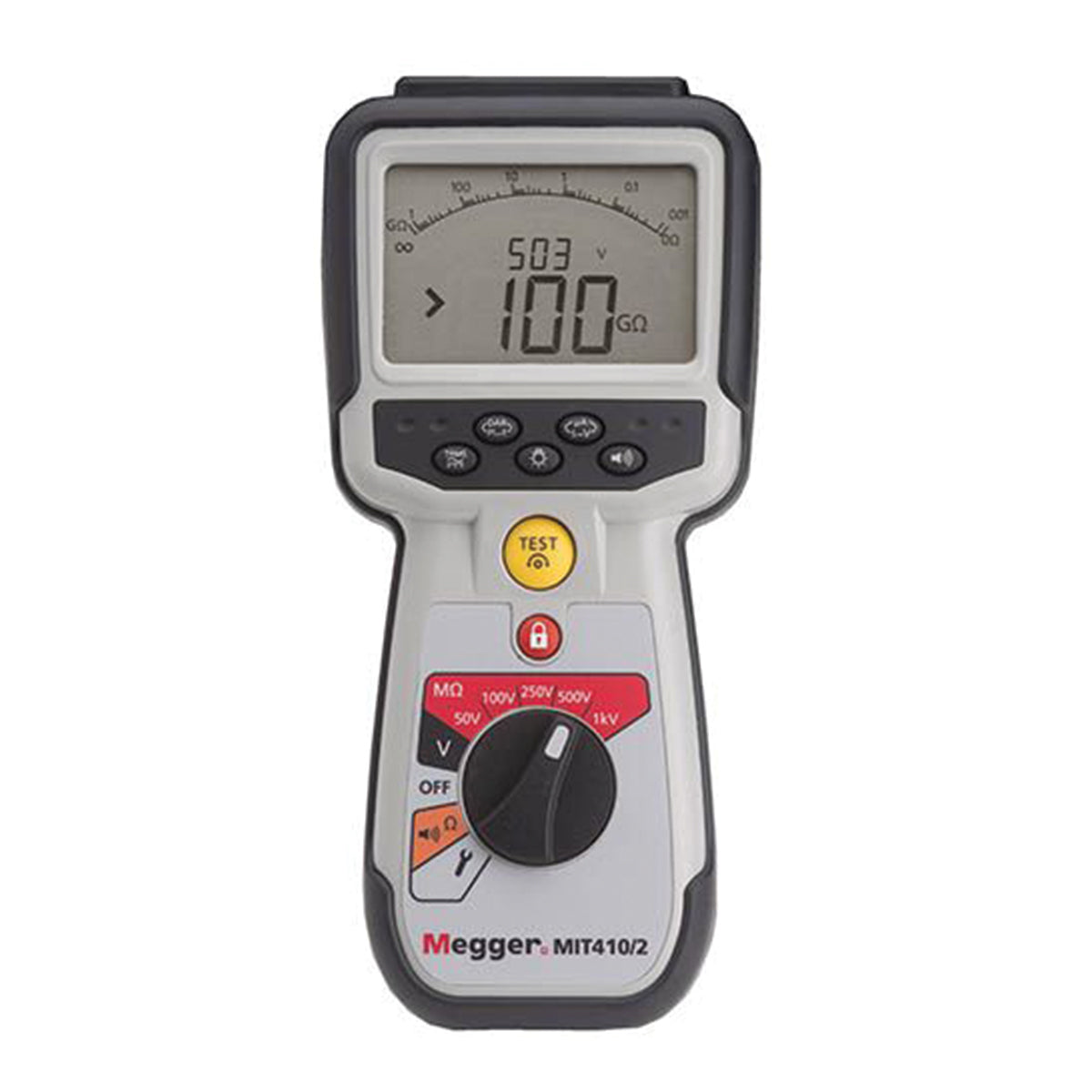

MEGGER-1004-735-MIT410/2 Insulation Tester 1000V

The Megger MIT410-2 Insulation and Continuity Tester has a wide range of applications in electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics, and maintenance. Insulation testing has been enhanced with feedback controlled test voltages to limit over-voltage to 2%, rather than the industry standard 10-20%. A variable range has been added to allow any intermediate voltage from 10 V to 1000 V in 1 V steps. Continuity testing is now significantly faster, and a single auto-ranging 0.01 to 1.0 M function replaces the “ohms” and “kOhms” ranges. The MIT410-2 features a redesigned case, back-stand, and 6 cell battery compartment with separate fuse access. All instruments are over-moulded for increased protection and achieve an IP54 weatherproof rating.

Key Features:

• Insulation testing up to 1000 V and 200 G range
• Stabilized insulation test voltage
• Single range, faster continuity testing from 0.01 to 1 M
• Adjustable insulation test voltage from 10 V to 1000 V*
• 600 V Trms AC and DC voltage measurement
• Test result storage and Bluetooth® downloading*
• Live circuit detection and protection
• Rechargeable options for mains and car charging
• CAT IV 600 V and IP54
