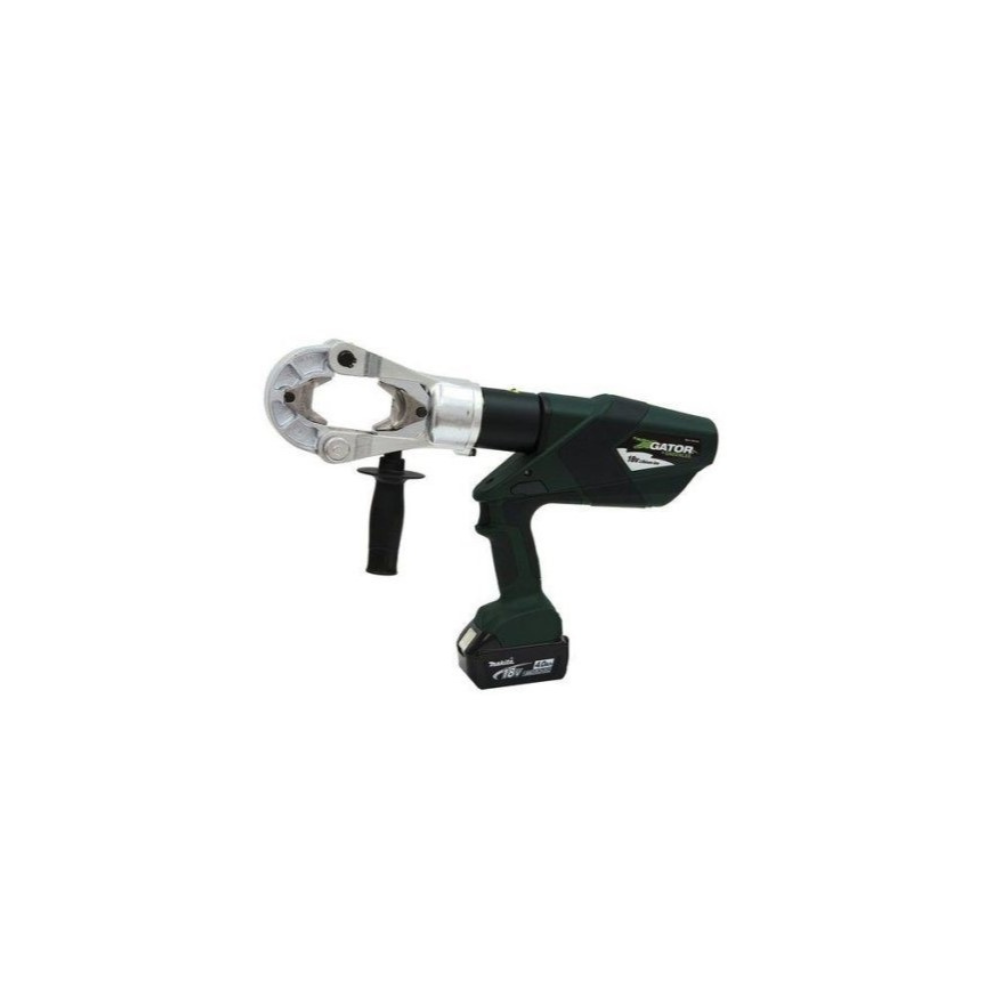

Greenlee EK1550FLX11 15 Ton Crimper Flip T, Li-Ion, Standard, 120 V

Product Overview: Greenlee EK1550FLX11 15 Ton Crimper Flip T, Li-Ion, Standard, 120 V

Features:

Equipped with Bluetooth™ Communication enabled via the Greenlee Gator Eye app. Features LED display screen communicating pressure and battery levels as well as tool diagnostics with real-time tool feedback.

• Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
• State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
• Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
• LED light provides the operator with the battery charge and tool maintenance status
• Two-stage hydraulic system provides fast advance and power speed, saving time
• Forward handle position improves tool balance
• One trigger controls all tool functions
• Crimping head rotates 350°rees
• Tools automatically retract when the crimping cycle is complete
• Flip-top configuration, reduction in deflection, with improved crimp consistency
• Quick-release locking pin
• Utilizes ‘P’ and ‘U’ style crimping dies
• Overmolded tacky grip areas make gripping the tool easier and more comfortable

Specifications:

• Sub Brand : Gator
• Type : Die style crimper
• Application : 15 Ton Crimping
• Standard : C/US UL Listed
• Wire Size : 8 AWG – 1500 kcmil Cu, 8 AWG – 1250 kcmil Al
• Overall Length : 18.5 IN (470mm)
• Crimping Force : 30,000 lbs. (134 kN)
• Crimping Capacity : 1500 kcmil (MCM) Copper, 1250 kcmil (MCM) Al
• Connector Type : Color-coded lugs and splices
• Handle Type : Pistol Style with over molded rubber grip
