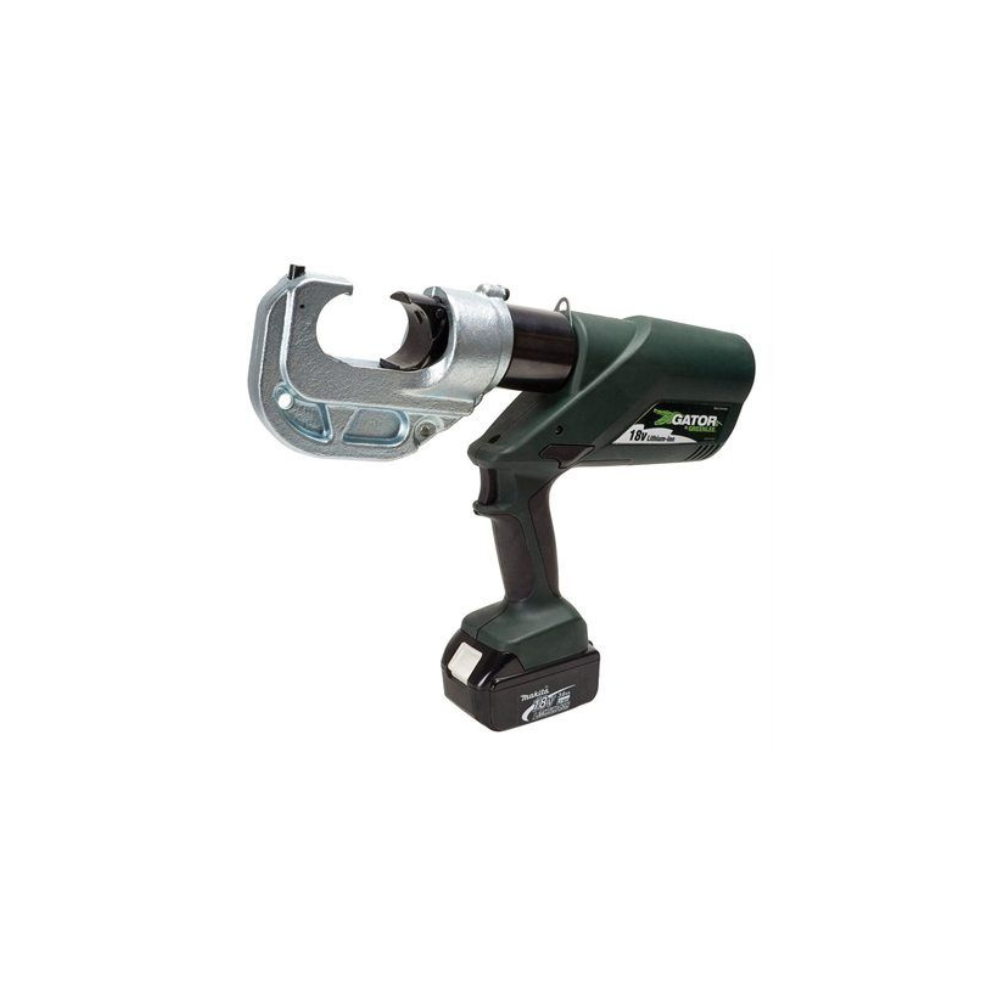

Greenlee EK1240L11 Die Cable Crimper

Product Overview: Greenlee EK1240L11 Die Cable Crimper

EK1240L11

• Intelligent Crimping System Technology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
• State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
• Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
• LED light provides the operator with the battery charge and tool maintenance status
• Two-stage hydraulic system provides fast advance and power speeds, saving time
• Forward handle position improves tool balance
• One trigger controls all tool functions
• Crimping head rotates 350°
• Tools automatically retract when the crimping cycle is complete
• Overmolded tacky grip areas make gripping the tool easier and more comfortable
• LED work light illuminates dark work areas
• Greenlee battery-powered crimping tools now use bio-degradable oil
• Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
• Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger
• Three crimping head choices: EK1230L with 1.20 IN (30mm) opening uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry U style crimping dies, EK1240L with 1.65 IN (42mm) opening uses Greenlee KC12, KA12 & KD12 crimping dies plus all industry U style crimping dies, EK1240KL uses Kearney PH2 style crimping dies
• Covered head models have two layers of PVC that total approximately 3/16 IN (4.8 mm) thick. The outer layer is black and the inner layer is red
• U.S. Patents #6,206,663 and #6,065,326

  Specifications

• Accessory : 12274 UPC 12274 Carrying Strap
• Battery : 18 V, 3.0 AMP-HR Lithium-Ion
• Crimping Capacity : 8 AWG – 750 KCMIL Copper Color Coded Lugs And Splices
• Crimping Force : 24000.000 LB (106.000 KN)
• Estimated Cycles per Charge : 90
• Opening Size : 1.650 IN (42.000 MM)
• Overall Length : 16-1/4 IN (413.000 MM)
• Replacement Part : 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 EK1230L & EK1240L Carrying Case, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 VCharger
• Rotation : 350°
• Standard : C/US UL Listed
• Sub Brand : Gator
• Type : Battery Powered
• Weight : 15.000 LB (6.800 KG)
