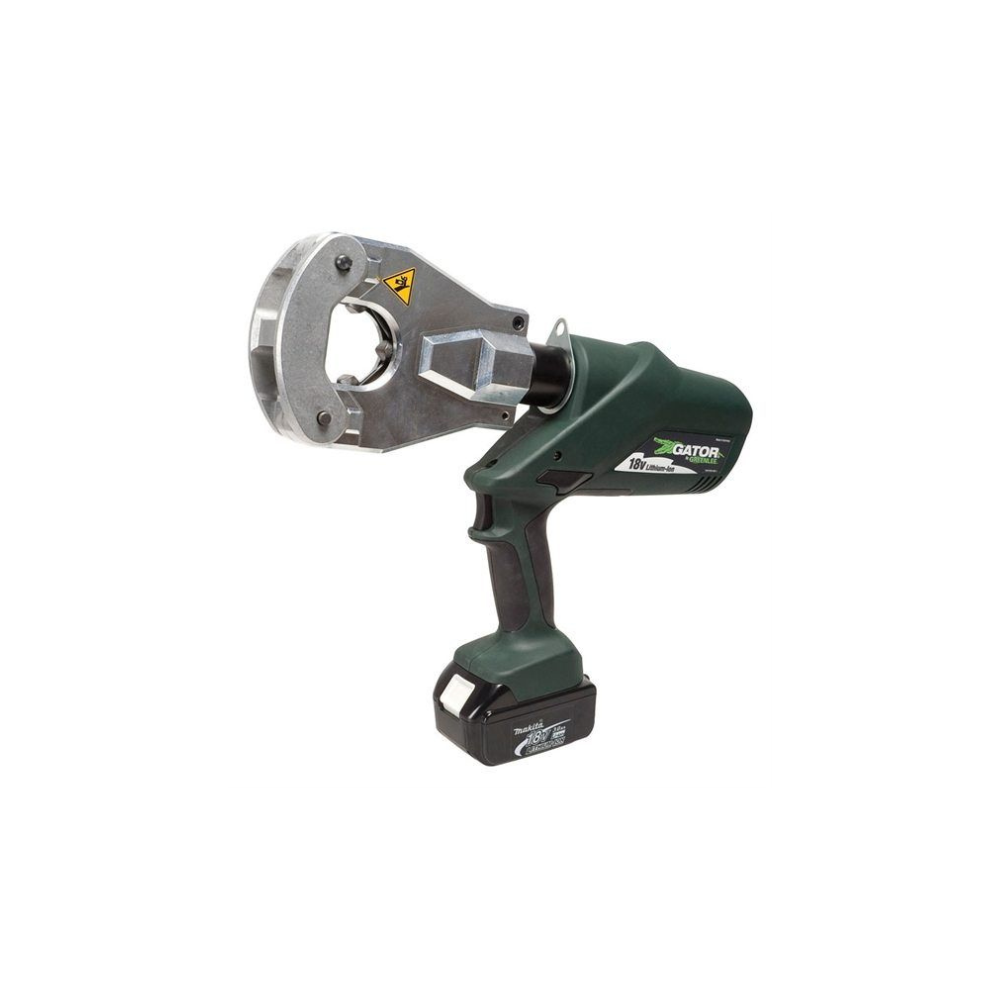

Greenlee Crimper Tool, Dieless FT Bat 12V Charger

Product Overview: Greenlee Crimper Tool, Dieless FT Bat 12V Charger

EK06FTL12

• Intelligent Crimping SystemTechnology includes a pressure sensor that monitors the crimping force of each crimp and provides the operator a visual and audible alert if the force is below specifications
• State of the art 18V lithium ion (Li-ion) battery provides 70% more cycles per charge and faster cycle times
• Automatic Retraction Stop (ARS) which retracts the ram just enough to get ready for the next cycle saving time and energy
• LED light provides the operator with the battery charge and tool maintenance status
• Two-stage hydraulic system provides fast advance and power speeds, saving time
• Forward handle position improves tool balance
• One trigger controls all tool functions
• Crimping head rotates 350°
• Tools automatically retract when the crimping cycle is complete
• Overmolded tacky grip areas make gripping the tool easier and more comfortable
• LED work light illuminates dark work areas
• Greenlee battery-powered crimping tools now use bio-degradable oil
• Smart chargers control the charging current, charging voltage and battery temperature to maximize battery life
• Utilizes four indentors to make the crimp
• Flip-top style uses a pull pin to open head for easy removal from the connector
• U.S. Patents #6,206,663 and #6,065,326
• Available with 120V, 12V or 230V battery charger or with 120V or 230V corded adapter in place of batteries and charger

Specifications:

• Accessory : 52178 UPC 52178 120 V Charger
• Battery : 18 V, 3.0 AMP-HR Lithium-Ion
• Battery Charge Time : 1 HR
• Crimping Capacity : 6 AWG – 500 KCMIL Copper Lugs And Copper Splices, 6 AWG – 400 KCMIL Aluminum Lugs And Aluminum Splices
• Crimping Force : 12400.000 LB (55.000 KN)
• Overall Length : 14.000 IN (355.000 MM)
• Replacement Part : 52176 UPC 52176 18 V 3.0 AMP-HR Li-ion Battery, 10118 UPC 10118 Carrying Case, 12274 UPC 12274 Carrying Strap, 52178 UPC 52178 120 V Charger, 52179 UPC 52179 12 V Charger, 52180 UPC 52180 230 V Charger
• Standard : C/US UL Listed
• Sub Brand : Gator
• Type : Battery Powered, Quad Point Dieless
• Weight : 11.000 LB (5.400 KG)
