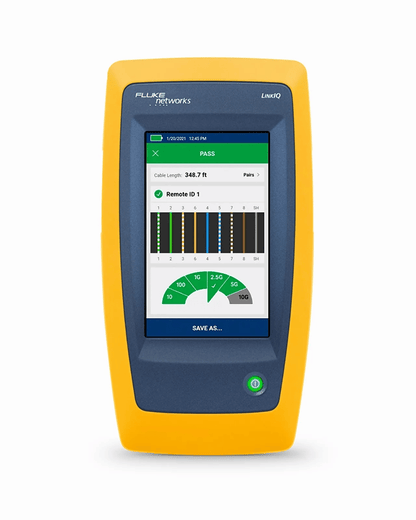

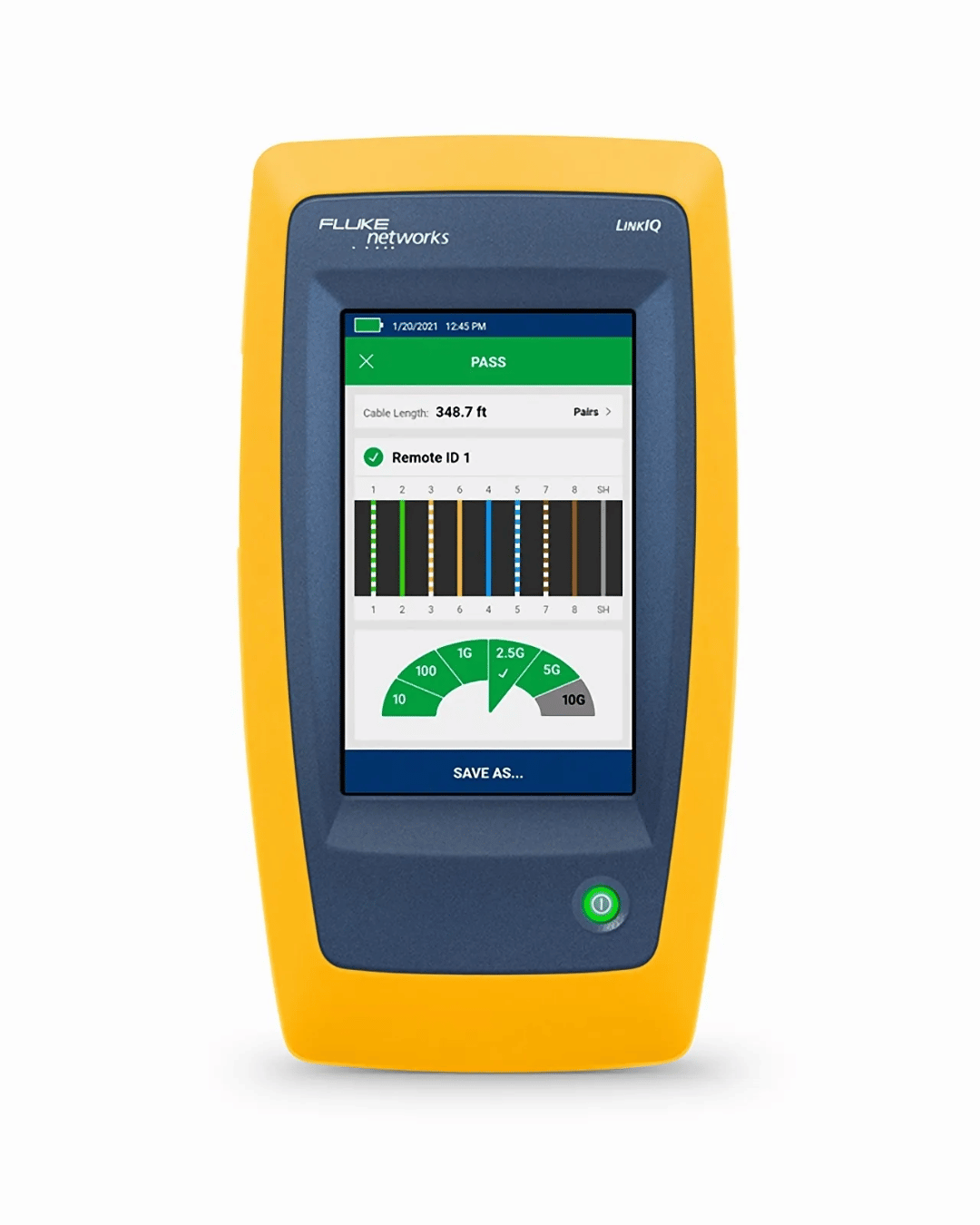

Fluke LinkIQ Cable and Network Tester - LIQ-100

The Fluke LinkIQ™ LIQ-100 Cable + Network Tester combines cable performance validation and Ethernet troubleshooting in one tool. It identifies cable faults, verifies switch connectivity, and supports testing for up to 10 Gb/s links. Ideal for network installers and IT technicians, it streamlines PoE verification and port diagnostics with an intuitive touchscreen interface.

Key Features and Benefits:

• Tests cable length, faults (opens, shorts, miswires), and wiring
• Verifies Ethernet up to 10 Gb/s and PoE class (1–8)
• Switch diagnostics: port ID, advertised speed, VLAN detection
• Easy-to-use touchscreen UI for fast navigation
• Rugged, handheld design suitable for field environments

Specifications:

• Cable Test: Up to 305m (1000 ft), fault location, wiremap 
• Network Test: Port ID, switch speed (10/100/1000/2500/5000/10000 Mbps), PoE Class (up to Class 8) 
• Display: Color LCD 
• Power: Rechargeable battery 
• Applications: Network installation, troubleshooting, PoE verification, IT infrastructure
