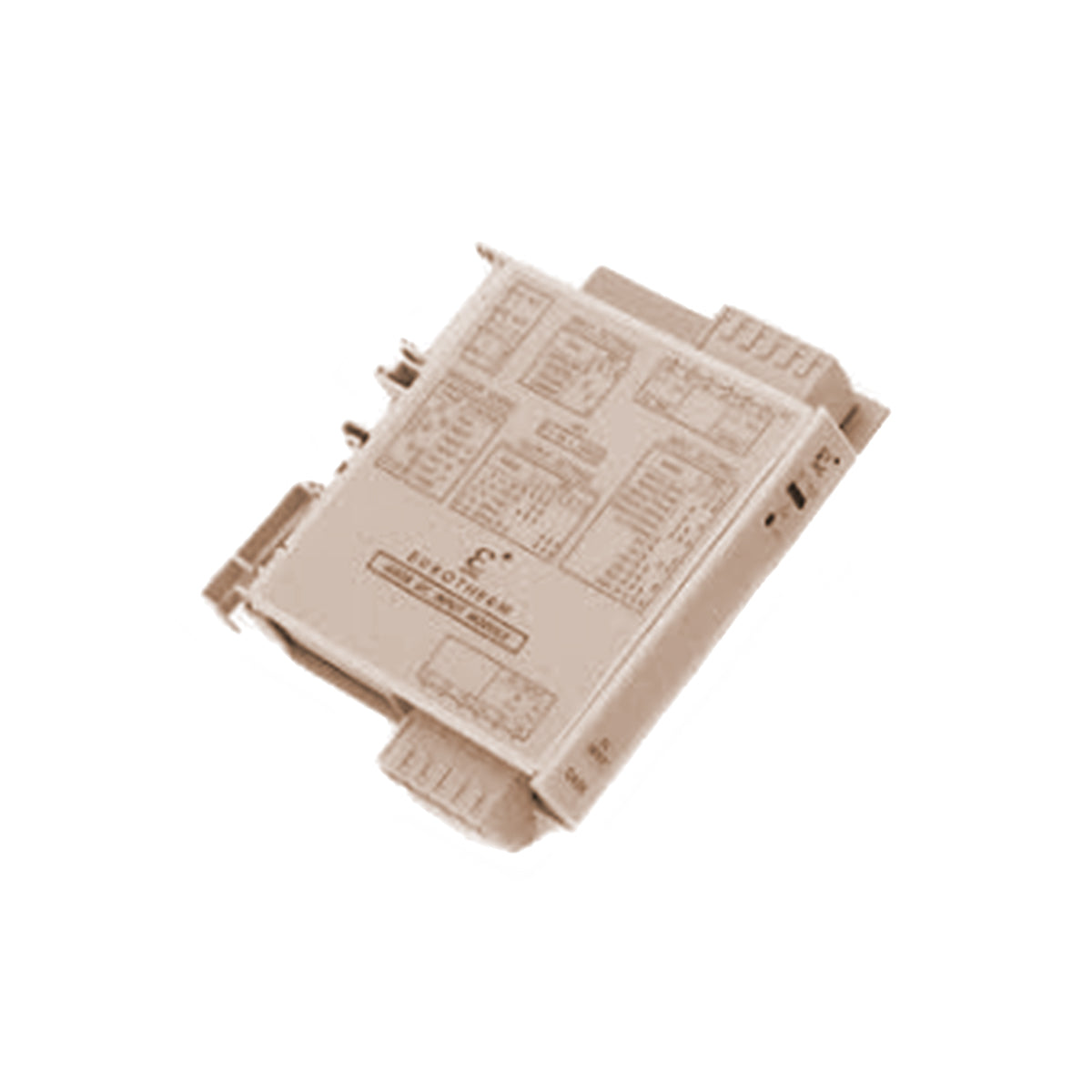

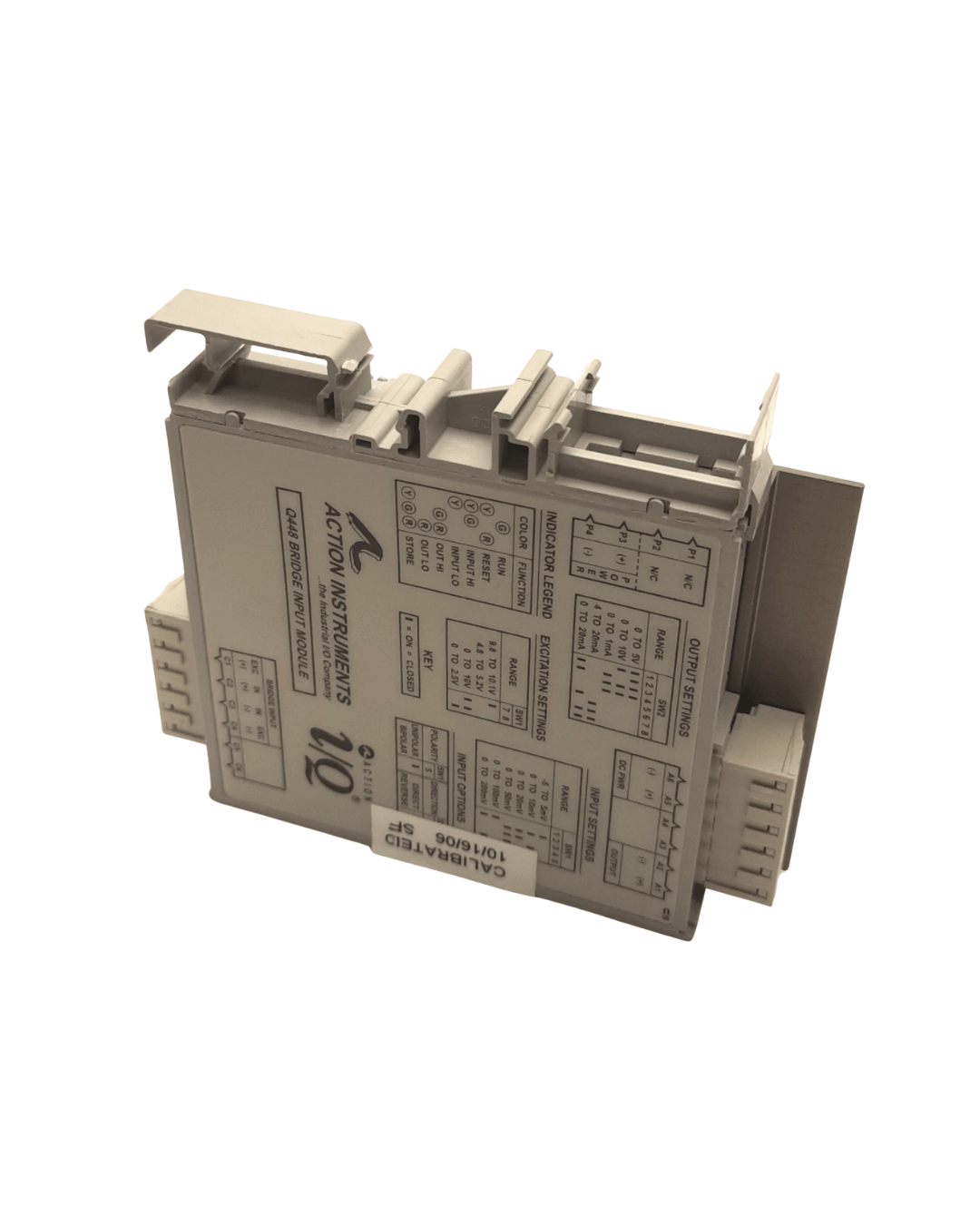

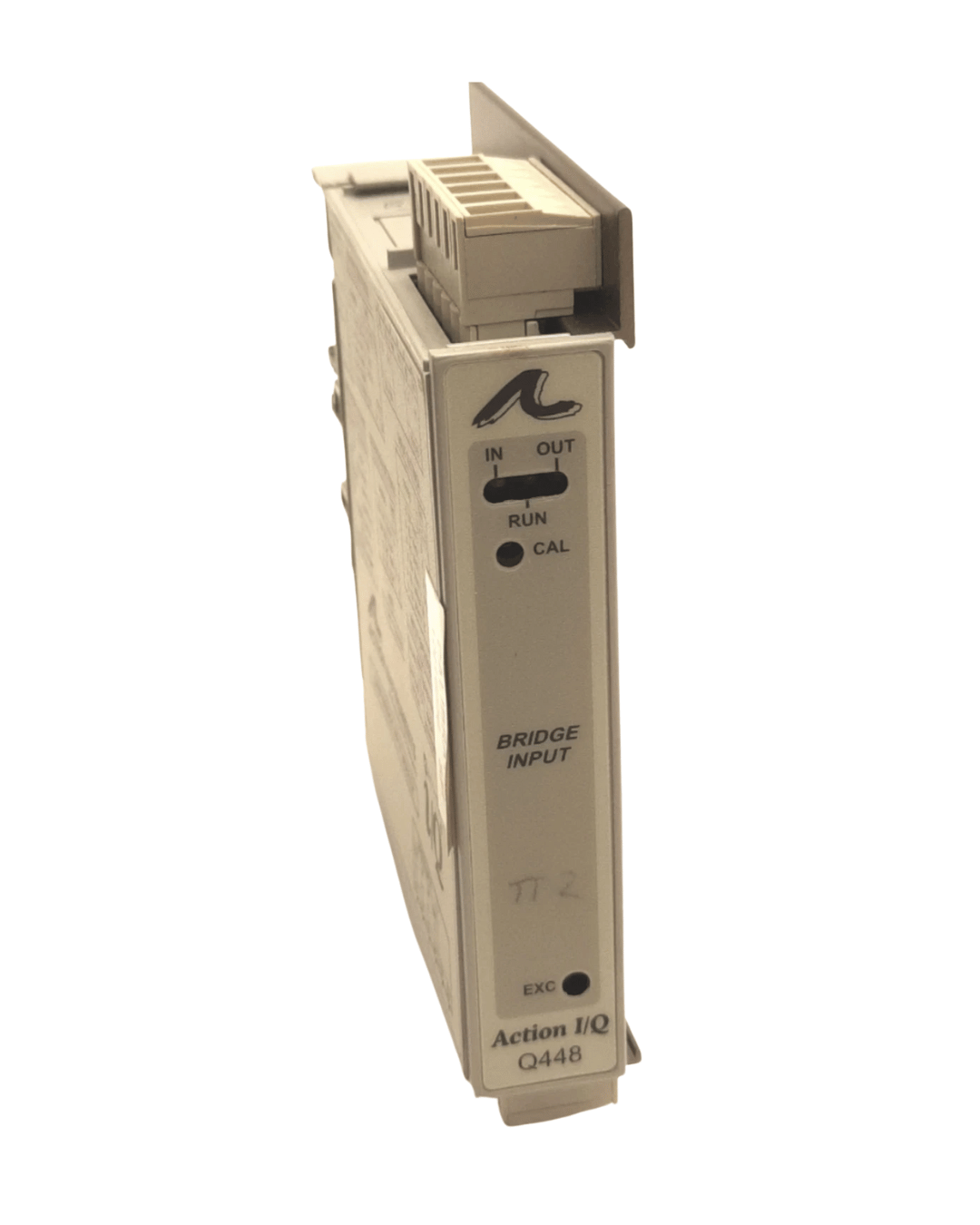

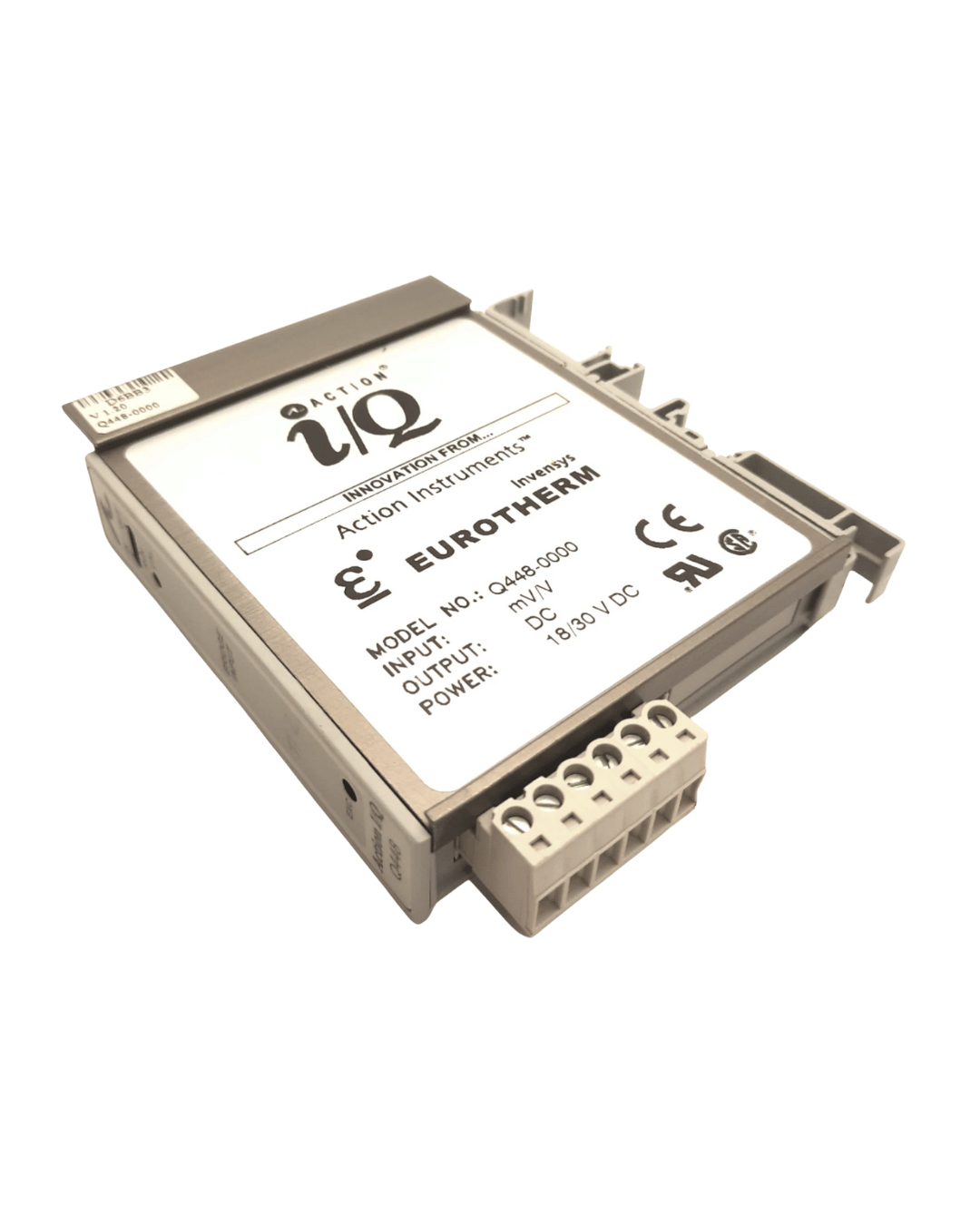

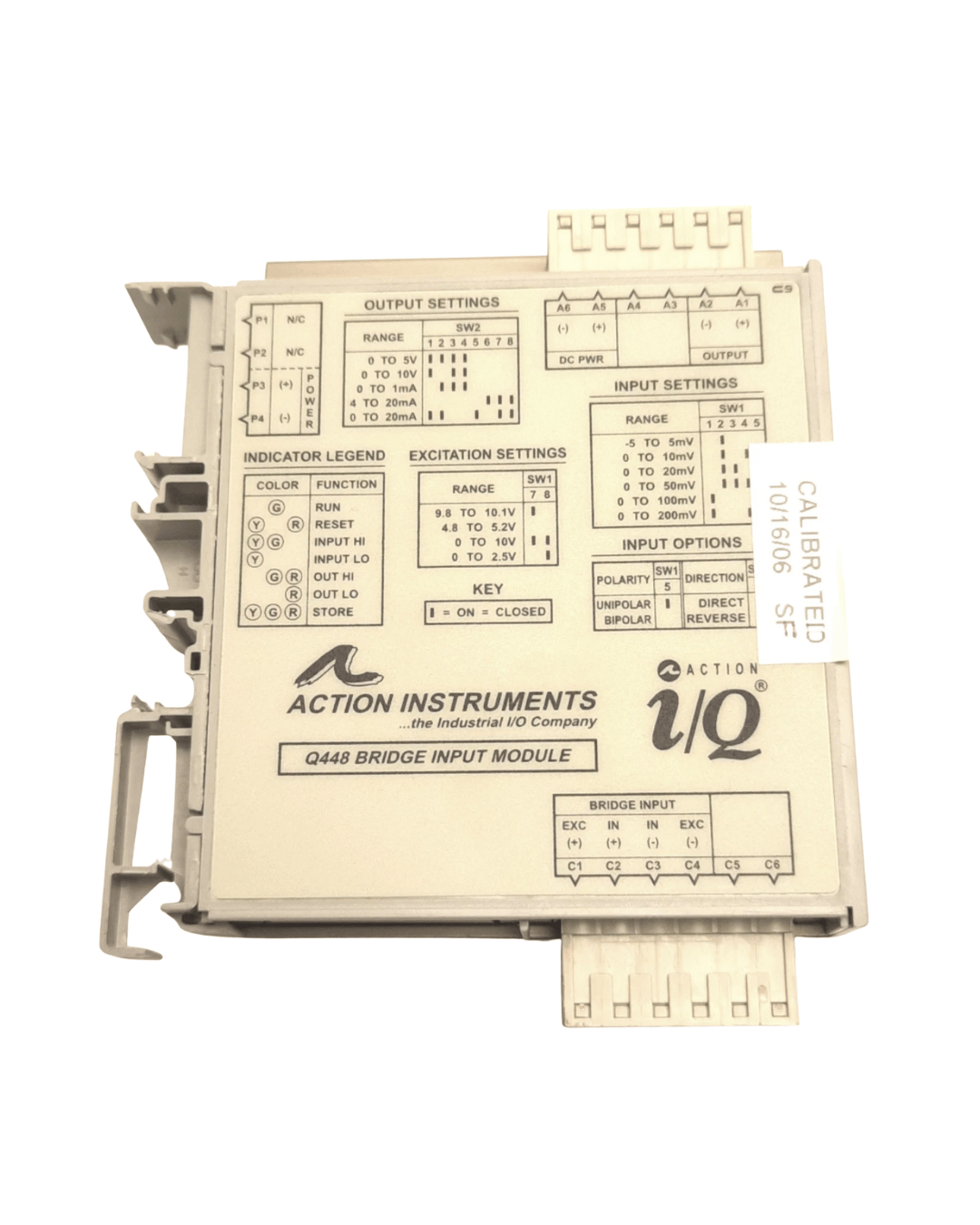

EUROTHERM-Q448-0000-Isolator

The EUROTHERM Q448 is a DIN rail mount, DC powered bridge or strain gauge input signal conditioner with 1800 VDC isolation between input, output and power. Advanced digital technology combined with ASIC technology allows the EUROTHERM Q448 to be field configured for virtually any Bridge input to DC output within the limits specified. The input can be set via DIP switches for any one of 11 voltage ranges from 10 mV to ±200 mV. The output is linear to the input and can be set for either 0-5 V, 0-10 V, 0-1 mA or 4-20 mA, direct or reverse acting.

Key Features:

• Adjustable bridge excitation
• Field configurable input ranges
• Field configurable output ranges
• TouchCAL technology
• High Density DIN rail mounting
• Flexible DC power supply accepts 18 to 30 VDC
