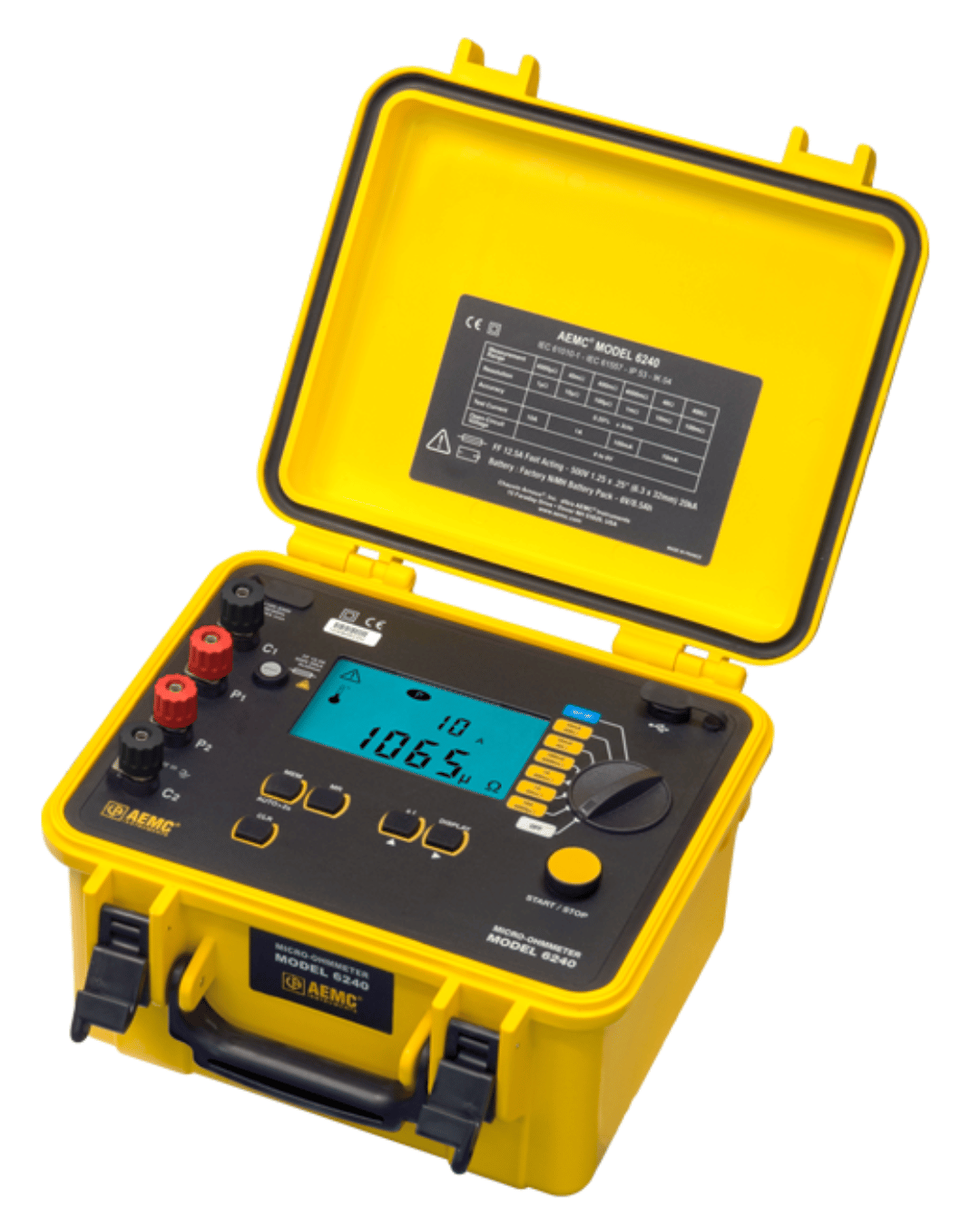

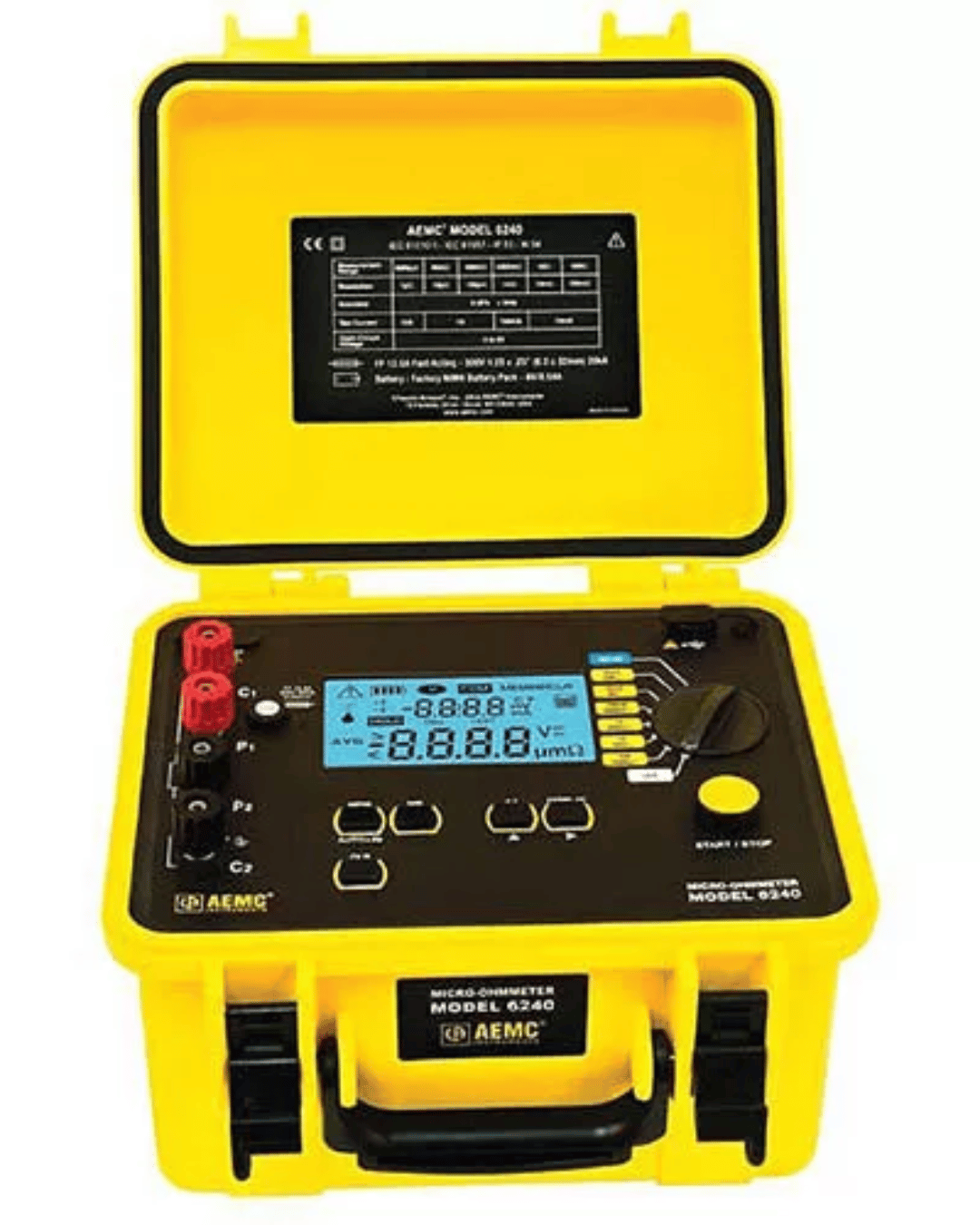

AEMC 6240 Micro-Ohmmeter - Model 2129.8

The AEMC 6240 Micro-Ohmmeter (Model 2129.8) is engineered for high-precision low-resistance testing in demanding environments. Featuring a 10A test current, autoranging capabilities, and an intuitive backlit display, it’s ideal for testing electrical bonds, contacts, bus bars, and transformer windings. The rugged build and portability make it suitable for field and lab use alike.

Key Features and Benefits:

• 10A test current ensures accurate bond and contact testing
• Autoranging for quick measurements without manual range setting
• Backlit display enables readability in low-light conditions
• Ideal for transformer, bus bar, and cable testing
• Durable case with carrying handle for field portability

Specifications:

• Measurement Range: 1µΩ to 4000mΩ 
• Test Current: Up to 10A 
• Display: Dual 10,000-count LCD 
• Power Supply: Rechargeable NiMH battery 
• Standards: EN 61010-1, EN 61326-1 
• Applications: Switchgear testing, bonding verification, motor windings, grounding continuity
