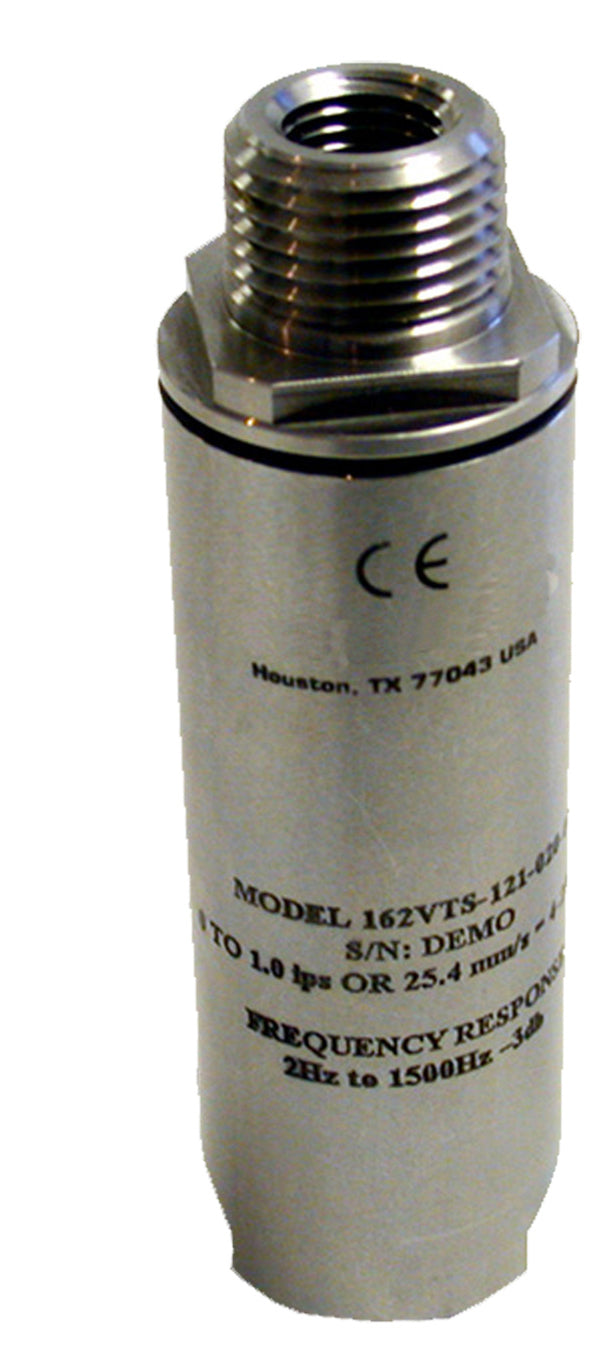

Metrix 162VTS-M58 Seismic Vibration Transmitter – 2-Wire, Loop-Powered

Metrix 162VTS-M58 Vibration Transmitter – 4-20mA Output, Velocity-Based

The Metrix 162VTS-M58 is a compact, high-performance vibration transmitter built for continuous monitoring of rotating equipment. This Metrix vibration transmitter converts velocity to a standard 4–20 mA signal, ideal for motors, pumps, fans, and compressors.

Its slim, loop-powered design simplifies installation while delivering accurate, real-time data to PLCs or DCS systems—supporting predictive maintenance and reducing downtime.

Key Features & Benefits:

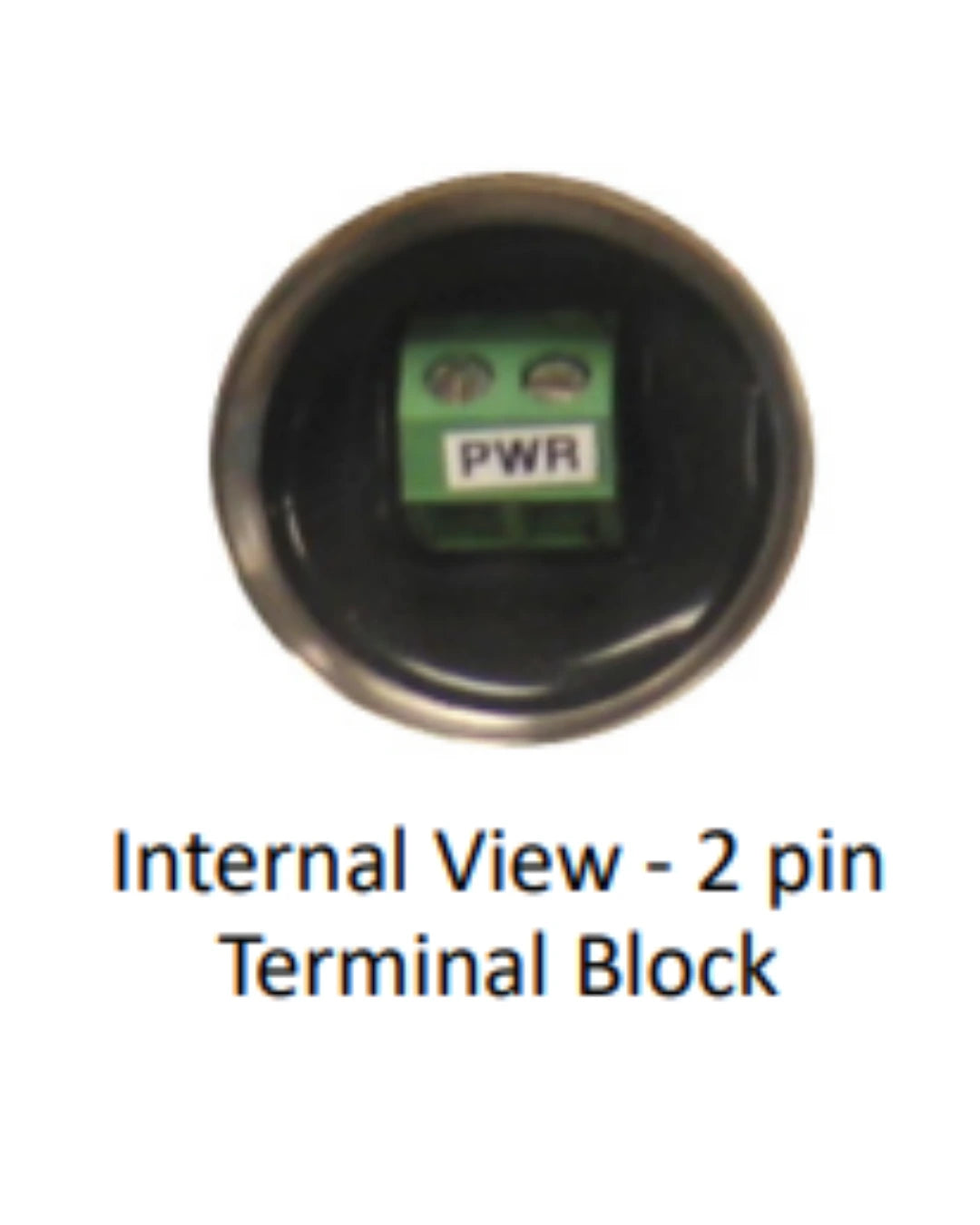

• Two-wire, loop-powered – easy install, no extra power supply
• 2–1500 Hz range – detects early imbalance and bearing issues
• Up to 3.2 IPS (peak) – configurable for different machines
• Rugged IP67/NEMA 4X body – withstands harsh industrial use
• ½" NPT stud – secure, low-noise mounting
• CSA Class I Div 1/2 – approved for hazardous areas

Specifications:

• Brand / Model: Metrix 162VTS-M58  
• Output Signal: 4-20 mA proportional to velocity  
• Measurement Ranges: 0.8 – 3.2 IPS pk (selectable)  
• Frequency Response: 2 – 1500 Hz  
• Supply Voltage: 11 – 30 V DC  
• Operating Temp: -40 °C to +100 °C  
• Ingress Rating: IP67 / NEMA 4X  
• Certifications: CSA (Div 1 & Div 2 variants)  
• Mounting: Integral ½-in NPT stud  
• Weight: 0.7 kg (1.5 lb)Brand / Model: Metrix 162VTS-M58
